Joiners & Assembly Accessories

Creative Simplicity

AYRES Joiners & Assembly Accessories are integral components of AYRES Lightweight Panel Systems. They provide a labour efficient and aesthetically pleasing assembly method, consisting of several joiners and assembly accessories to suit 6, 10, 20, 30 and 40mm panels.

JOINERS & ASSEMBLY ACCESSORIES

Download Booklet

Joiners

6mm / 0.236inch Joiners

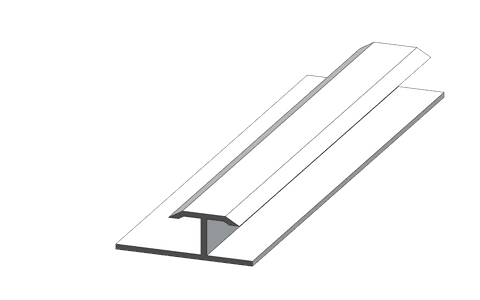

ACP094
Joiner

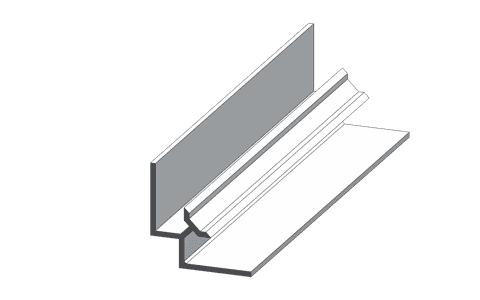

ACP115
Internal Corner

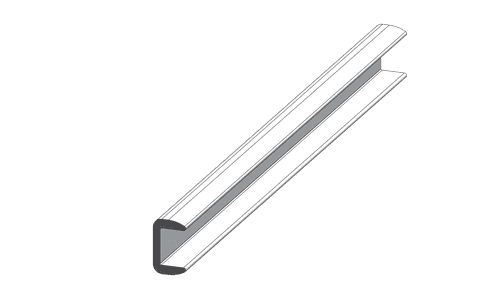

ACP82688
End Cap
10mm / 0.394inch Joiners

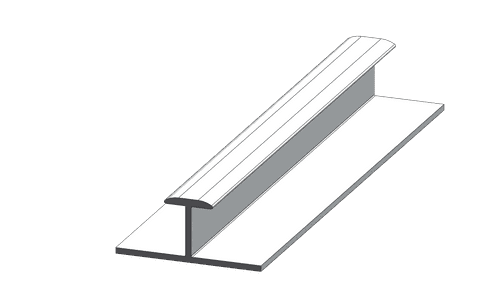

ACP130
Joiner

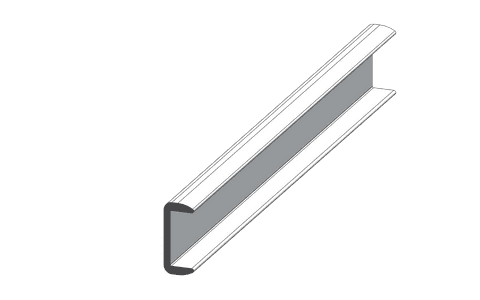

ACP131
End Cap

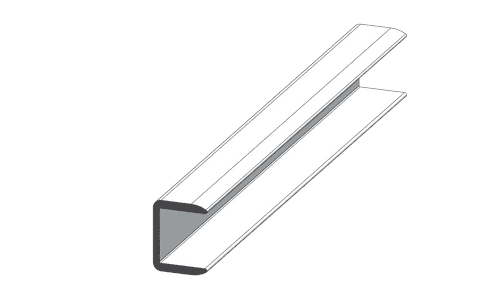

ACP83110
Channel

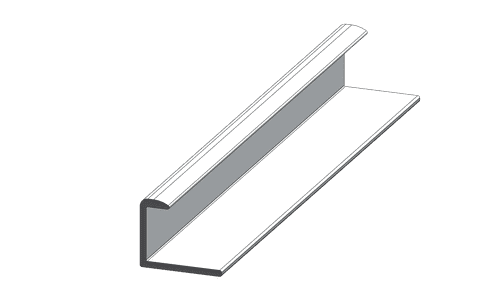

ACP80991
End Stop Short Leg

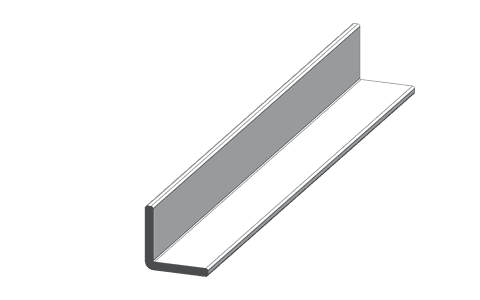

ACP81665
L Section

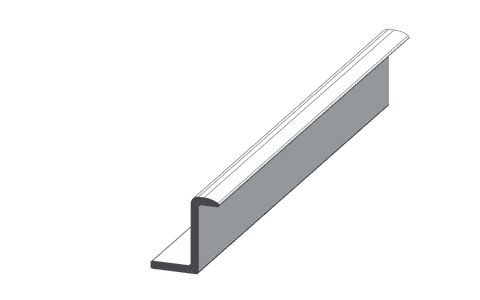

ACP8587
Cabinet Door Jamb

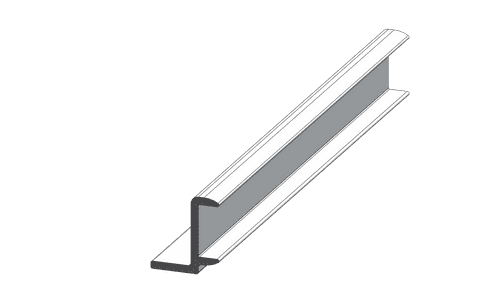

ACP81567
Cabinet Door Jamb with Retainer

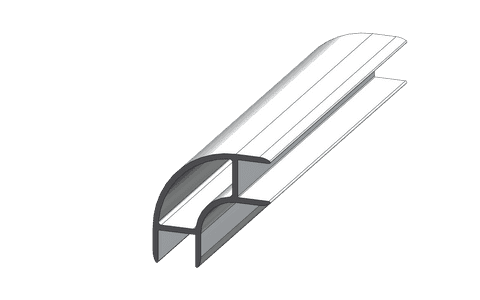

ACP83217
Corner Post

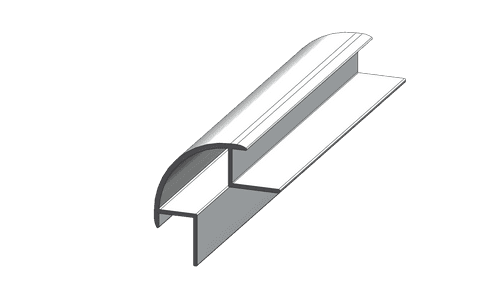

ACP81679
Corner Post Shallow Fit

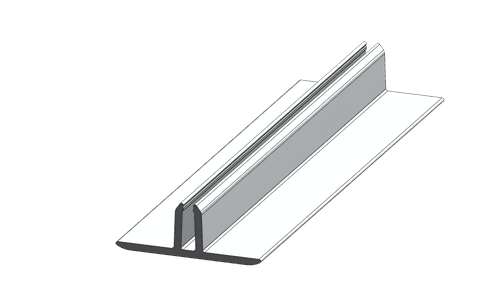

ACP81560
2 Part Female Joiner

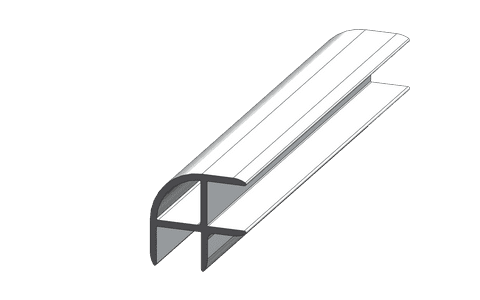

ACP83125
Corner Post Narrow
20mm / 0.787inch Joiners

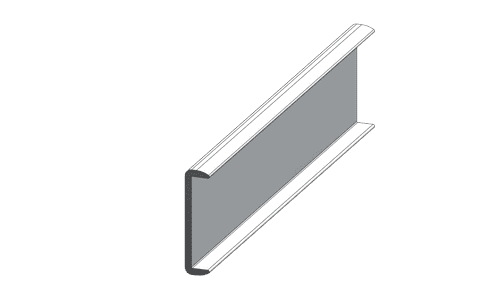

ACP80360
End Cap

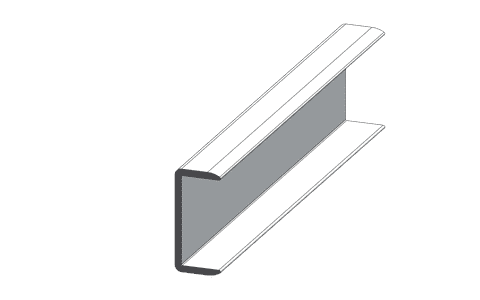

ACP83114
Channel Shallow

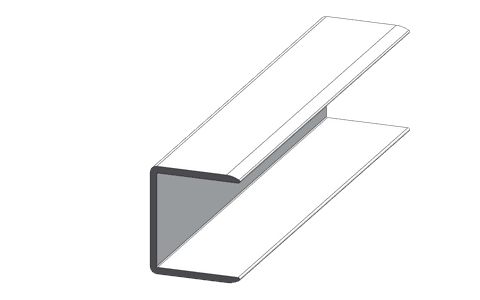

ACP81248
Channel Deep

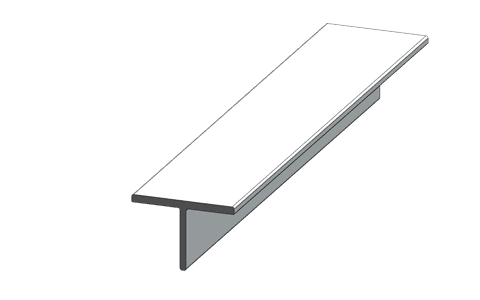

ACP81247
T Section

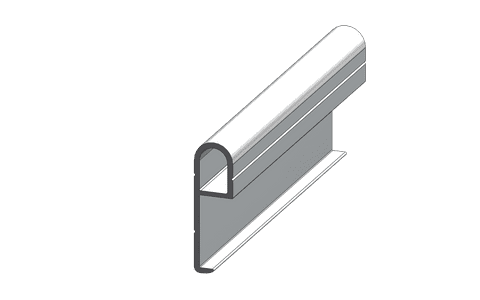

ACP8667
Shelf Edge

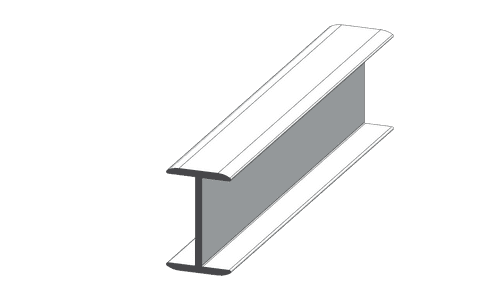

ACP82896
H Joiner Shallow

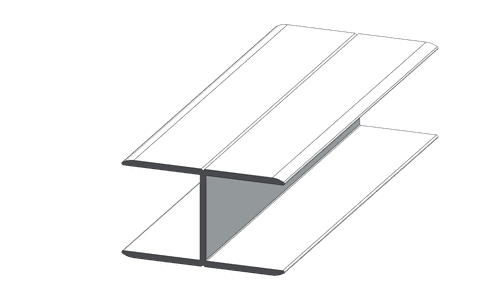

ACP81520
H Joiner Deep

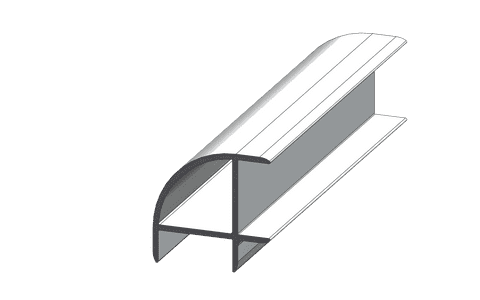

ACP83108
Corner Post

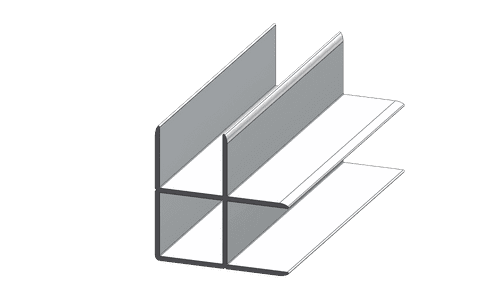

ACP81636
Corner Joiner

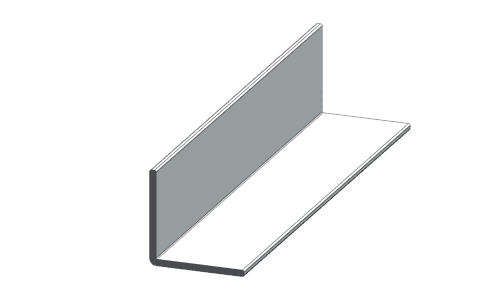

ACP81587
L Section

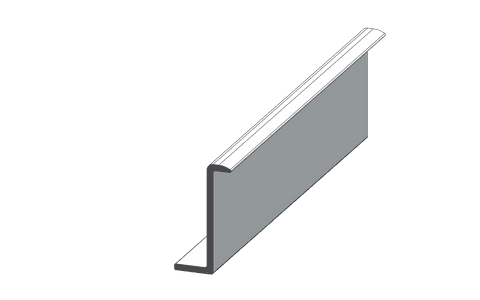

ACP2854
Cabinet Door Jamb

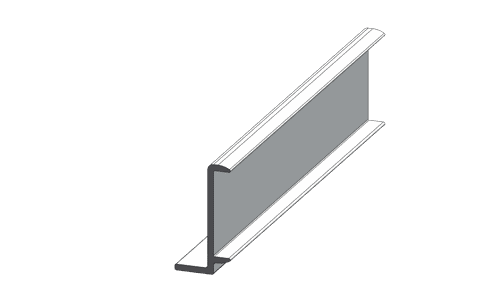

ACP81566
Cabinet Door Jamb with Retainer

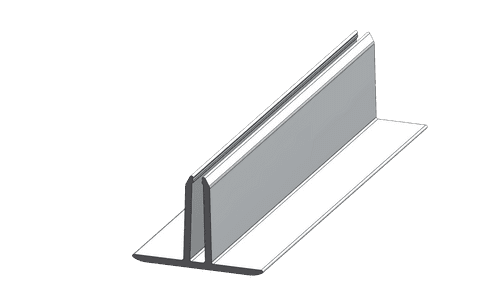

ACP81570
2 Part Joiner Female

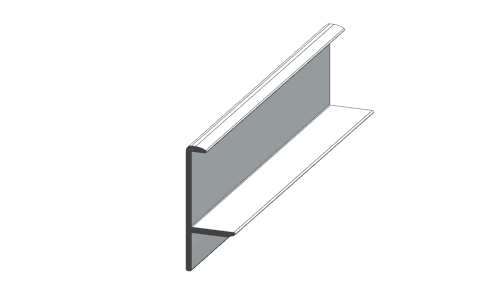

ACP83791
Cabinet Door Keeper
20mm / 0.787inch DIY Door System

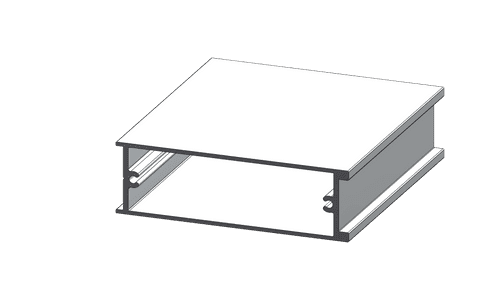

ACP80197
Door Stile

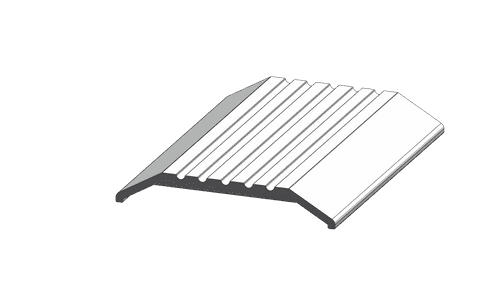

ACP81664
Threshold

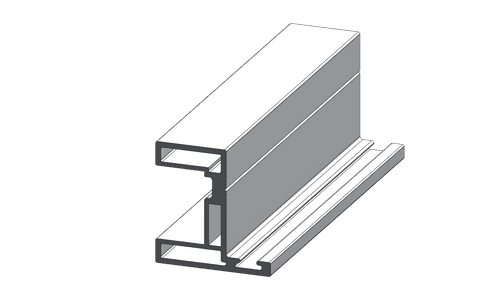

ACP83220
Door Jamb

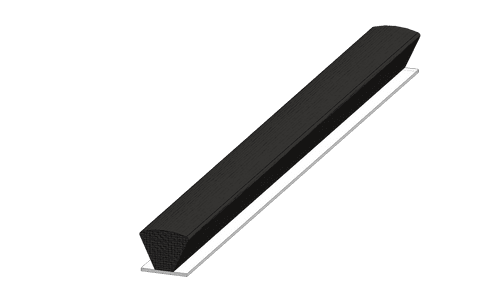

ACP2509
Felt Brush Pile

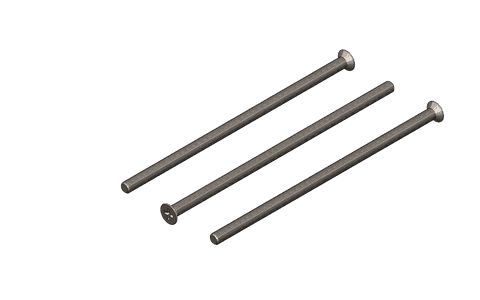

ACP2510
Countersunk Posi Drive S/S Screws

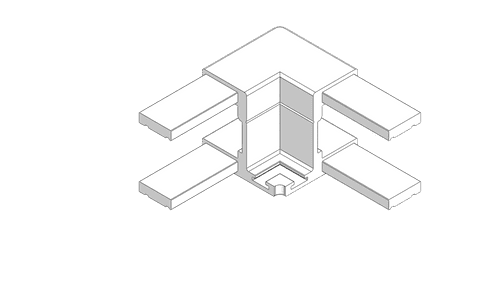

ACP1598
Door Jamb Joiner (ABS)
30mm / 1.181inch Joiners

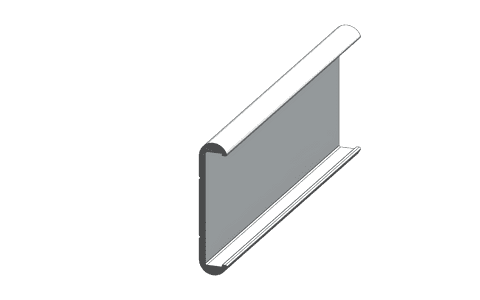

ACP83107
Table Edge Flush Surface
40mm / 1.575inch Joiners

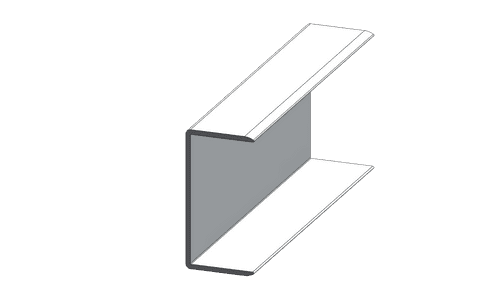

ACP83111
End Cap

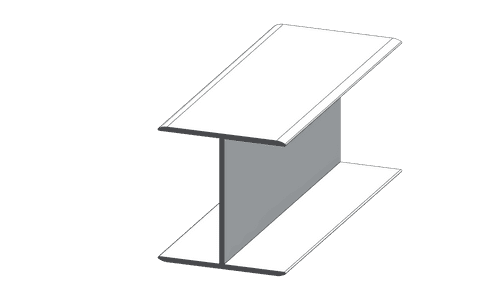

ACP83112
H Joiner

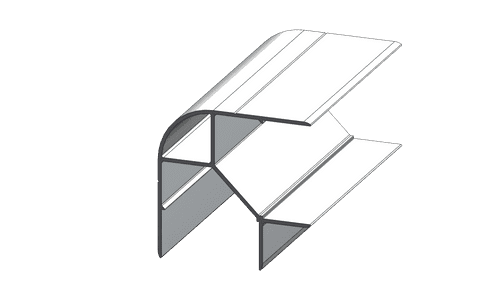

ACP83345
Corner Post
Universal Joiners

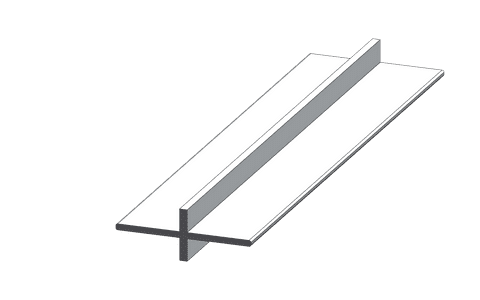

ACP80356
Internal Joiner (Suitable for Panels 10mm and over)

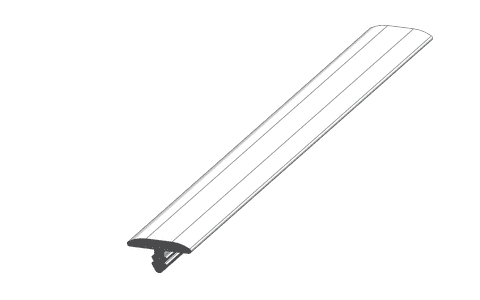

ACP81631
Bead Strip Serrated Tongue

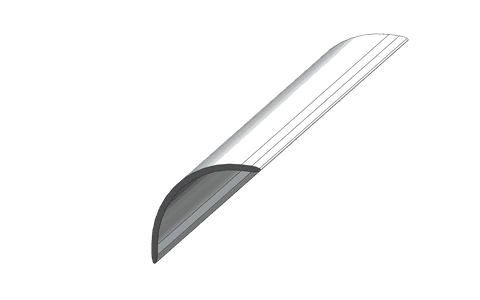

ACP80361
Corner Trim
ACP81665
L Section (10mm)
ACP81587
L Section (20mm)

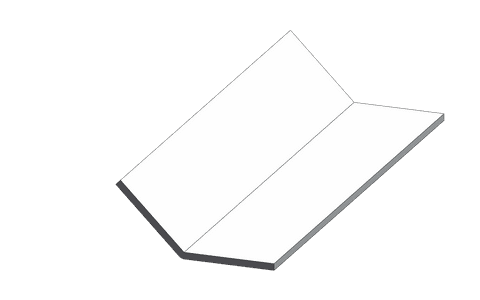

ACP81588
135 ̊ Angle

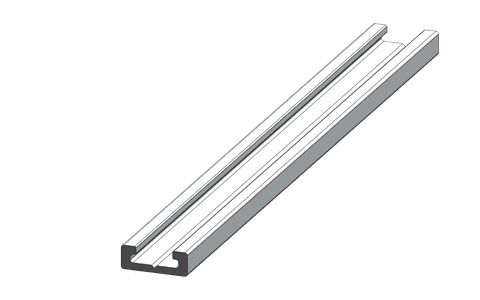

ACP81662
Sealing Strip Retainer
Skirting Sytem

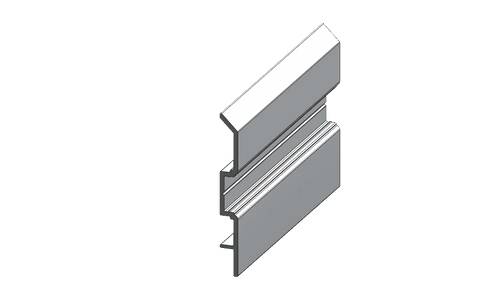

ACP83072
Skirting (60mmx6.7)

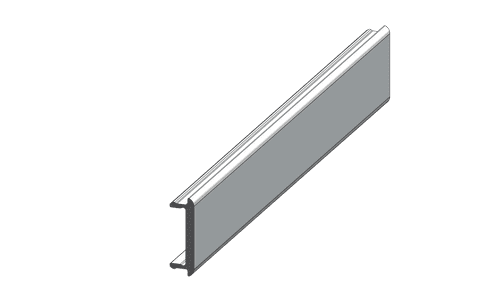

ACP83071
Skirting Fixing Cap

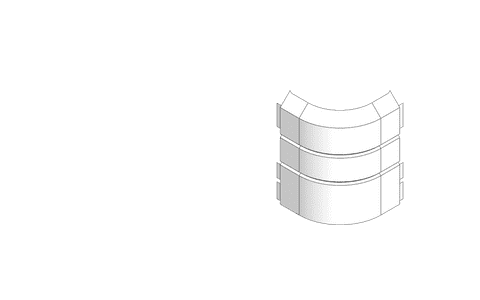

ACP1705
Corner Piece

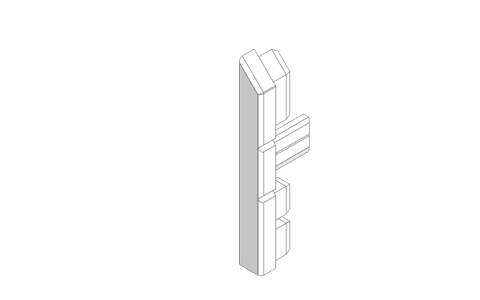

ACP3073
Skirting Cap LH

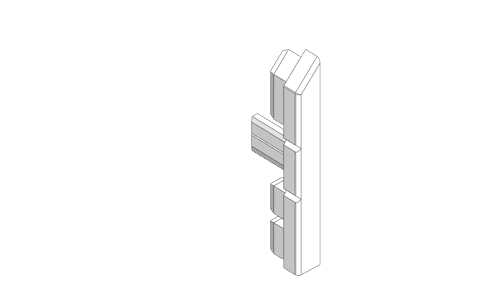

ACP3074
Skirting Cap RH
Download Booklet

Assembly

10mm / 0.394inch Assembly Accessories

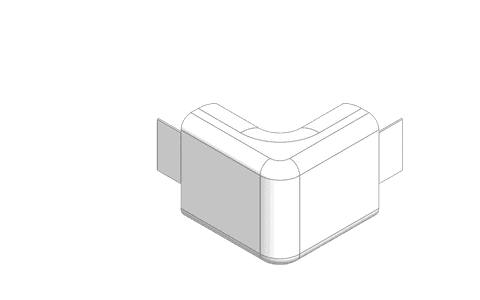

ACP1432
External Corner

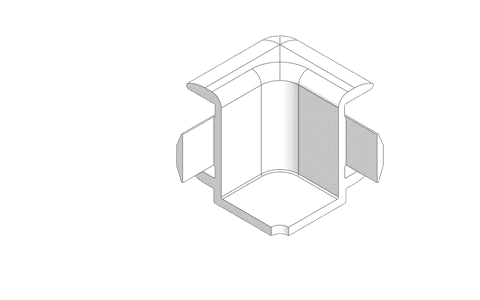

ACP1434
Internal Corner

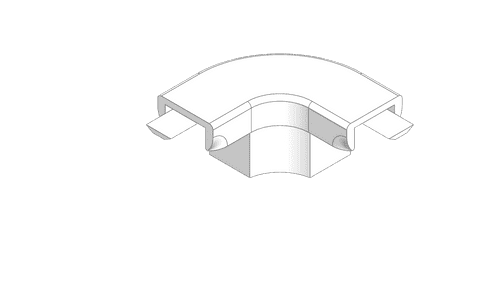

ACP1435
Corner Cap
ACP1603
Way Joiner

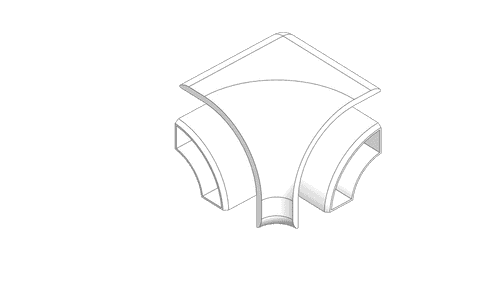

ACP1604
Internal Joiner
20mm / 0.787inch Assembly Accessories
ACP1532A
External Corner

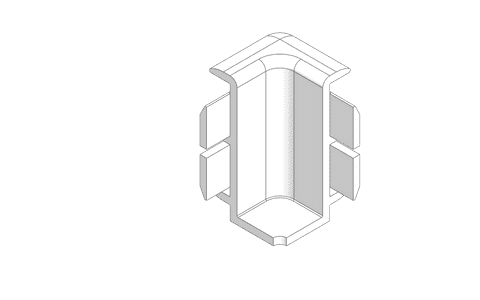

ACP1534
Internal Corner

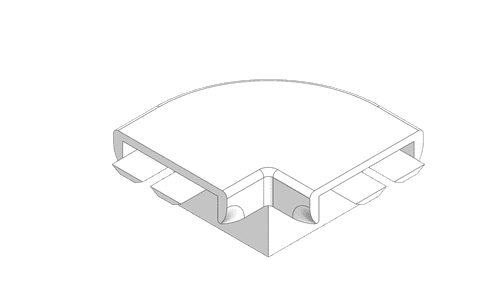

ACP1602
Corner Cap

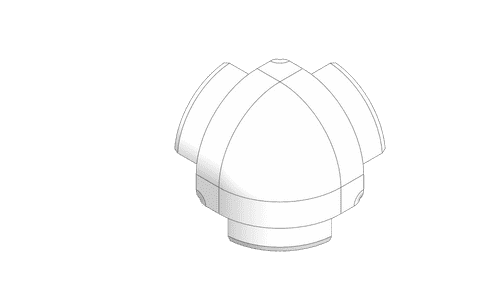

ACP1603
3 Way Joiner
ACP1604
Internal Joiner

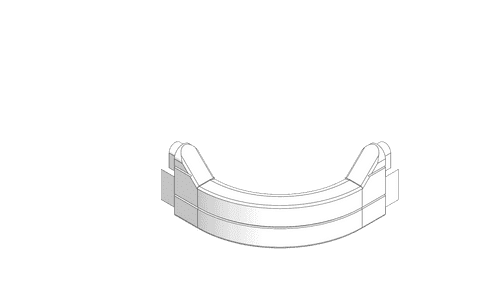

ACP1605
Shelf Edge Corner

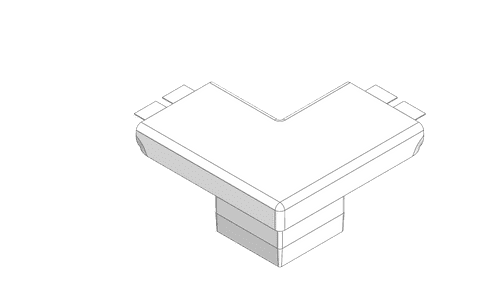

ACP1606
Corner Cap (suitable for ACP81636)

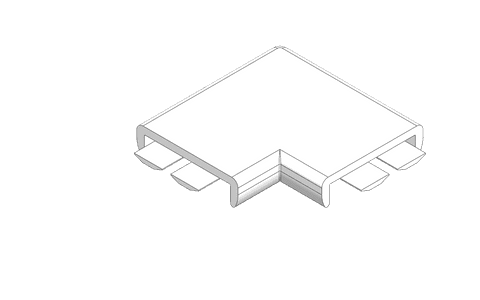

ACP1607
Corner Cap (Mitre Cut)
30mm / 1.181inch Assembly Accessories

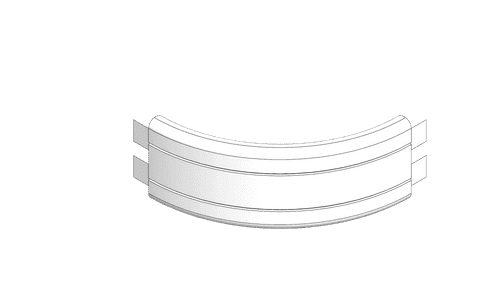

ACP1701
Table Edge Corner
40mm / 1.575inch Assembly Accessories

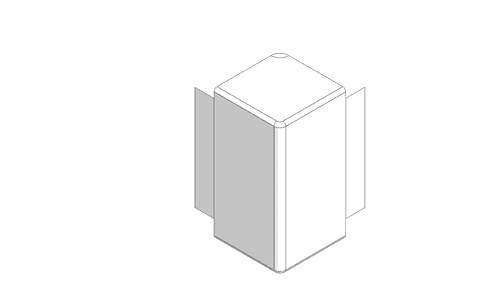

ACP1832
External Corner

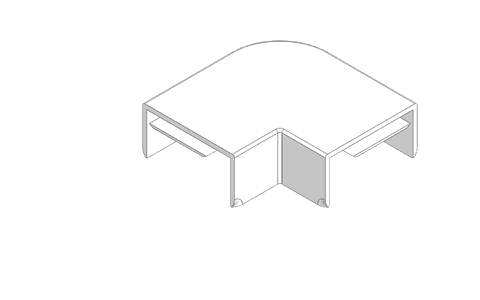

ACP1831
Corner Cap
ACP1603
Way Joiner
ACP1604
Internal Joiner

Tech Data

FEATURES

  • Aluminium alloy 6063 T5
  • Suits 6mm, 10mm, 20mm, 30mm and 40mm panel thickness
  • Standard joiner length is 4,900mm. Half lengths of 2,440mm are also available
  • Clear anodized finish, 10um thickness
  • Accessories made from ABS plastic

  FABRICATION

  • AYRLITE honeycomb panels are assembled with profiles and accessories using polyurethane adhesive e.g. Sikaflex 291. For ACP81247 and ACP80356 the AYRLITE honeycomb panel edges are slotted to accept the profile tongue
  • AYRLITE Assembly & Fabrication videos is available on request
